Automatic tester of contactless position detector (2)

Automatic tester of contactless, cylindrical and cubic position detectors manually transferred to next measuring position. It is PC-based control system, electronic measuring is carried out through GPIB communication devices.

• Final hundred-per-cent detector checking before being wrapped up and dispatched


• Automatic measuring of detector electronic parameters


• Hundred-per-cent production documentation including flaw identification

When producing many electronic components and complete products, we have to ensure hundred-per-cent output control. Reliable control process with sufficient capacity and complete documentation can be ensured only by automatic testers.

Above mentioned device demonstrates chance of complete hundred-per-cent contactless position detector testing.
This is PC-based control system equipped with SW in Windows environments. Device contains product detector databases, measuring configuration including acceptable values, executed measuring and flaw state archiving.
That way, the whole system controlled by computer, supports hundred-per-cent collection of production documents and subsequently SPC and SQC system connection.
Electronic parameter measuring devices are controlled by GPIB bus. Bar-code scanner enables input parameter reading but product marking with flaw description is made through label printer.

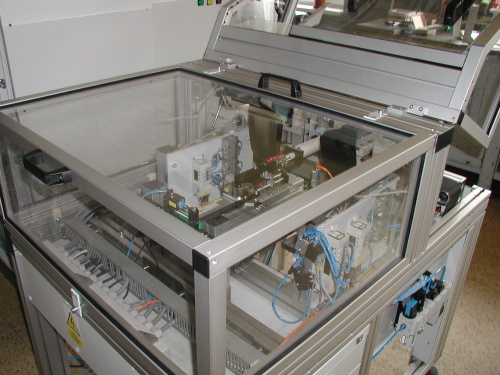

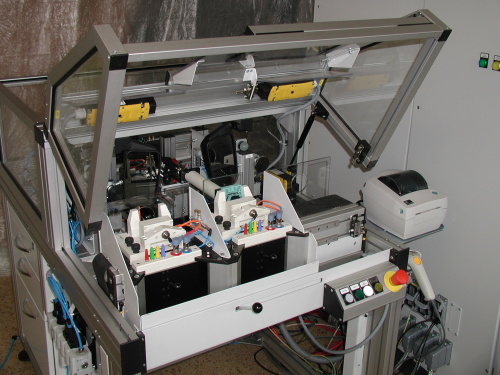

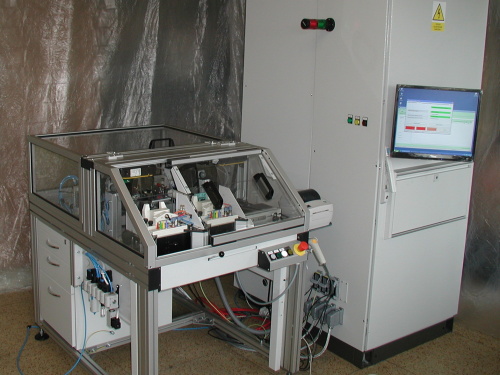

General view of detector tester
