Button load cell testing device

Test device enables button maximum resistance when being pressed. AL-profiles made supporting frame is fixed on the windshield by three sucking discs. It is adaptable for various types of instrument panels within limited strokes in single working axis. After checked button pressure, operating head enables up to 10mm limited stroke execution and its evaluation.

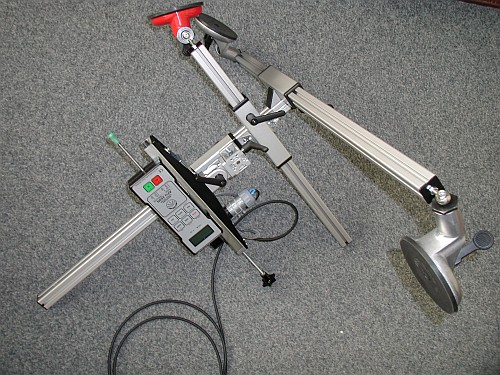

Overall view of the device
